DL-PNL003

LED MINI PANEL LIGHT

PRODUCT FEATURES

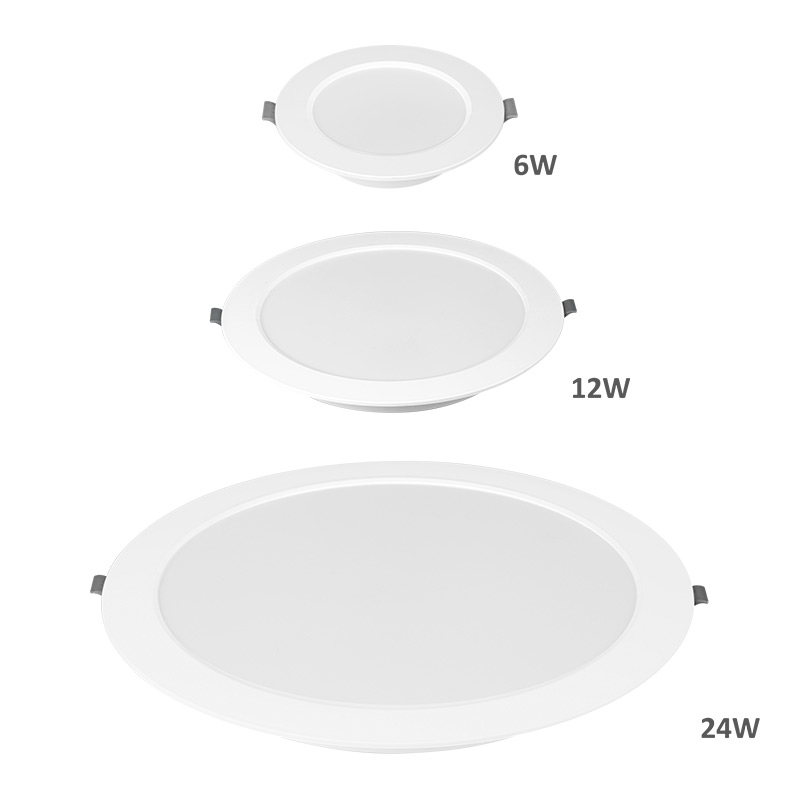

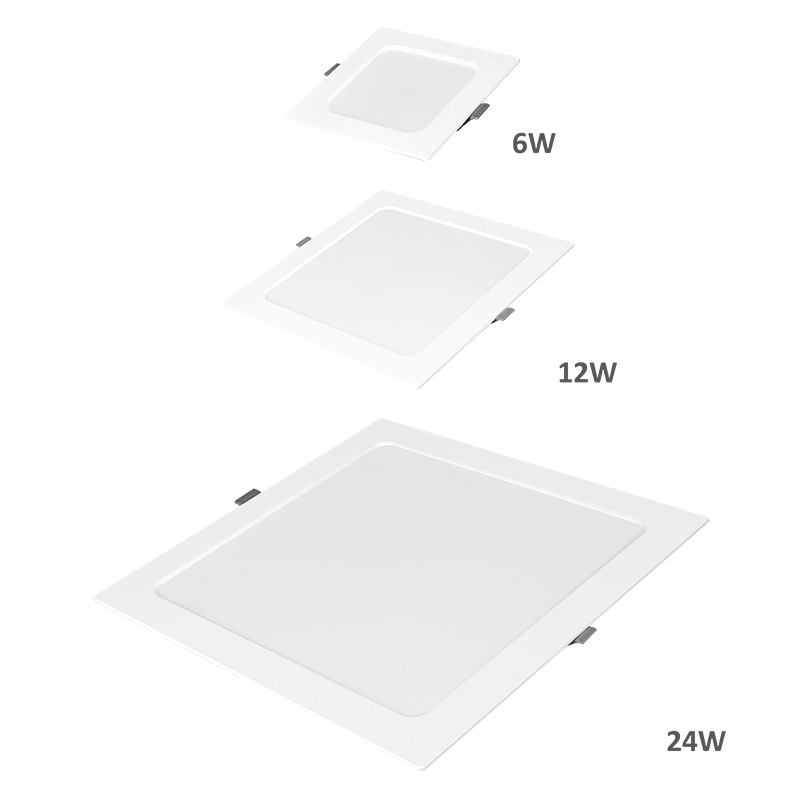

Round / Square Available

Flame Retardant PC Housing & Cover

Built-in Driver, Easy Installation

High Luminous Efficiency & Energy Saving

SPECIFICATIONS

Item

Wattage

Lumen

Beam Angle

CRI

IP

Hole Size

Dimension

DL-PNL003R-6W

6W

600lm

120°

80

IP20

φ95mm

Round φ118*25.5mm

DL-PNL003R-9W

9W

900lm

120°

80

IP20

φ110mm

Round φ145*25.5mm

DL-PNL003R-12W

12W

1200lm

120°

80

IP20

φ140mm

Round φ175*26.5mm

DL-PNL003R-18W

18W

1800lm

120°

80

IP20

φ190mm

Round φ222*27.5mm

DL-PNL003R-24W

24W

2400lm

120°

80

IP20

φ280mm

Round φ300*27.5mm

DL-PNL003S-6W

6W

600lm

120°

80

IP20

95*95mm

Square 120*120*26.5mm

DL-PNL003S-9W

9W

900lm

120°

80

IP20

110*110mm

Square 145*145*26.5mm

DL-PNL003S-12W

12W

1200lm

120°

80

IP20

140*140mm

Square 175*175*26.5mm

DL-PNL003S-18W

18W

1800lm

120°

80

IP20

190*190mm

Square 224*224*26.5mm

DL-PNL003S-24W

24W

2400lm

120°

80

IP20

280*280mm

Square 300*300*26.5mm
